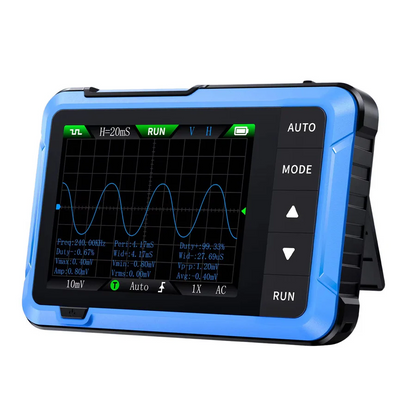

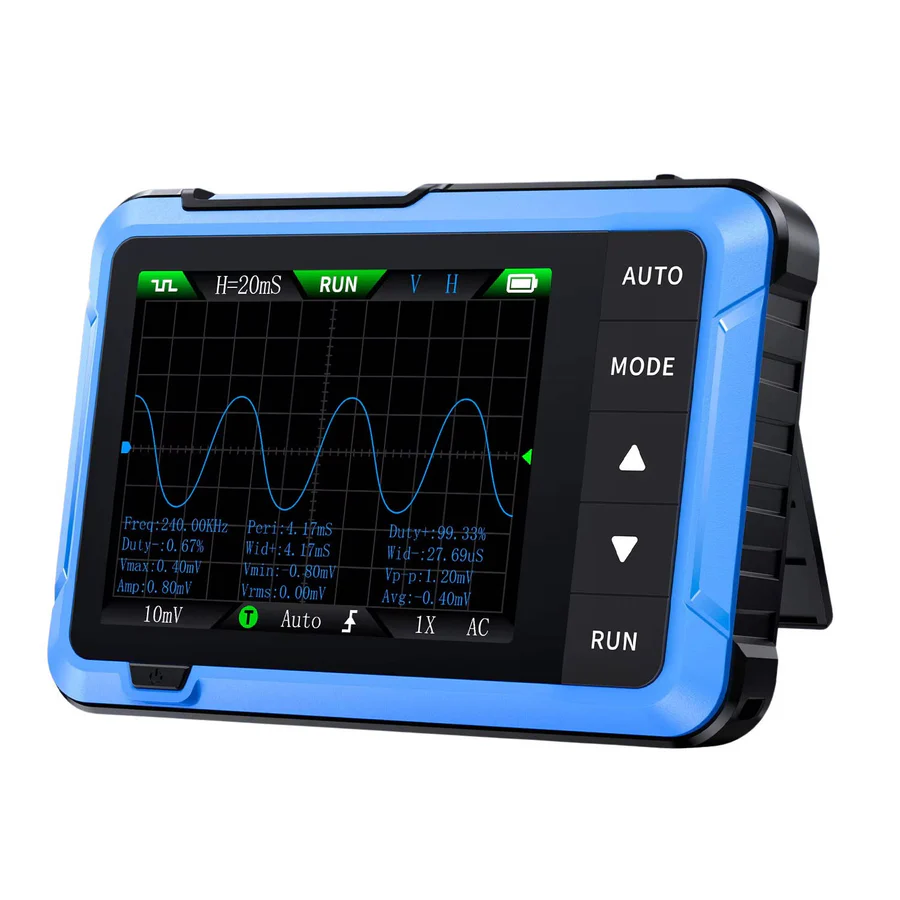

Compact Handheld Oscilloscope for DIY Electronics

Unlock Efficient Circuit Testing with Our Compact Digital Oscilloscope

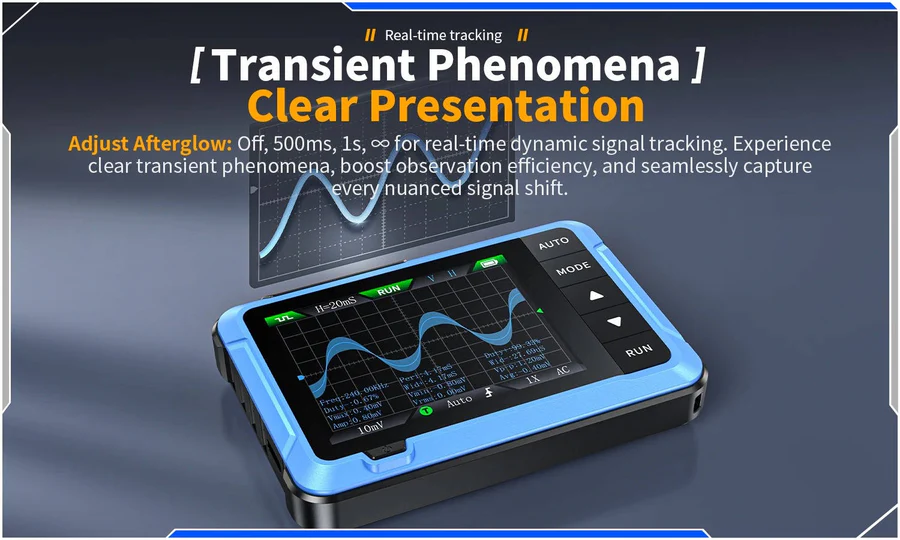

Experience the power of portable circuit testing with our lightweight digital oscilloscope. Weighing only 0.5 lbs, it's perfect for on-the-go engineers and technicians. Featuring instant AUTO configuration and a vibrant 2.8-inch LCD display with 320×240 resolution, you can quickly capture signals without any wait. This means you can diagnose issues faster and get back to work sooner.

Choose the Right Model for Your Needs

We offer two models tailored to your requirements: the Standard and Pro editions. The Standard variant is perfect for routine diagnostics, while the Pro edition provides elevated sampling rates and bandwidth for more sophisticated testing. With our Pro edition, you can enjoy 48 MS/s sampling and 10 MHz bandwidth, making it ideal for complex projects.

Reliable and Versatile

Both models come equipped with an integrated signal generator, can safely measure voltage up to ±400 V, and are powered by a rechargeable 1000 mAh lithium-ion battery that lasts for up to 4 hours during continuous use. This means you can test circuits with confidence, knowing your oscilloscope can handle high voltage measurements safely.

Key Features and Benefits

• Accurate Voltage Measurement: Measure voltage up to ±400 V with built-in safety features, giving you peace of mind during testing.
• Real-Time Sampling Rate: Enjoy 5 MS/s (Standard) or 48 MS/s (Pro) for precise signal acquisition, helping you diagnose issues quickly.
• Bandwidth Spectrum: Choose from 1 MHz (Standard) or 10 MHz (Pro) for high-frequency evaluations, making it perfect for complex projects.

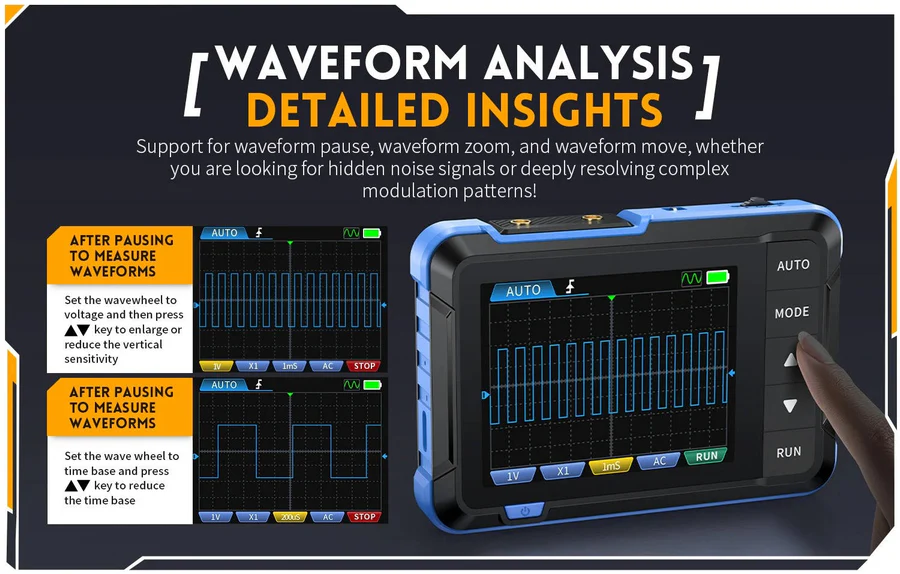

• Quick AUTO Mode: Instantly adjust settings to display waveforms with a single click, saving you time and effort.
• Bright Display: View signals clearly on our 2.8-inch LCD with 320×240 resolution, even in low-light environments.

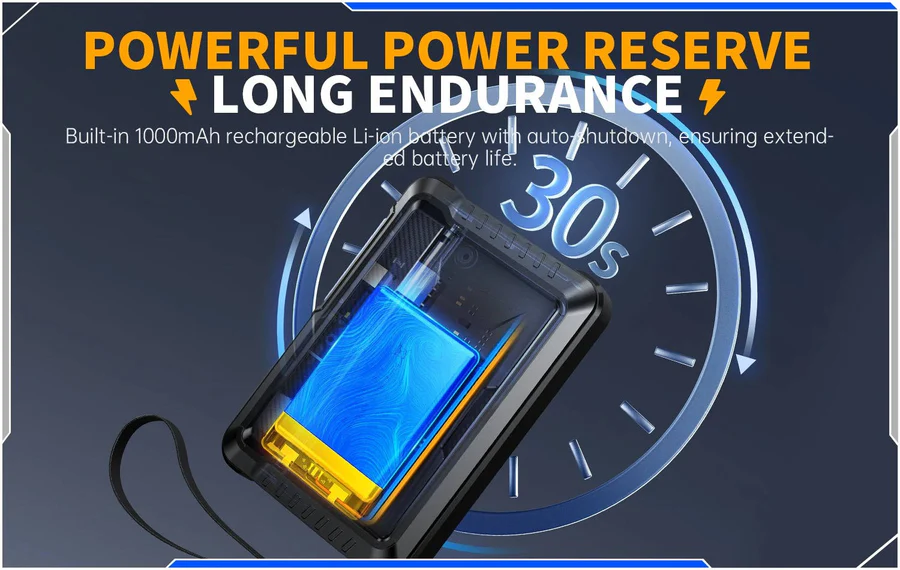

• Long Battery Life: Work uninterrupted for up to 4 hours with our rechargeable lithium-ion battery.
• Versatile Trigger Modes: Analyze signals with Single, Normal, and Auto options, giving you flexibility during testing.
• Integrated Signal Generator: Generate signals with 10 kHz (Standard) or 50 kHz (Pro) frequency, making it perfect for a variety of applications.

Product Specifications

• Display: 2.8-inch LCD
• Screen Resolution: 320×240
• Battery Capacity: 1000 mAh lithium
• Operating Duration: Up to 4 hours
• Voltage Measurement Range: ±400 V
• Sampling Rate: 5 MS/s (Standard), 48 MS/s (Pro)
• Bandwidth: 1 MHz (Standard), 10 MHz (Pro)
• Signal Generator Frequency: 10 kHz (Standard), 50 kHz (Pro)
• Weight: 0.5 lbs

What's Included

• 1 × Portable Digital Oscilloscope

Frequently Asked Questions

Q: What's the difference between the Standard and Pro models?
A: The Standard model offers 5 MS/s sampling with 1 MHz bandwidth, while the Pro model provides 48 MS/s sampling and 10 MHz bandwidth, making it perfect for complex projects.

Q: How long does the battery last?
A: Our rechargeable lithium-ion battery provides up to 4 hours of continuous use, so you can work uninterrupted.

Q: Can it measure both analog and digital signals?
A: Yes, our oscilloscope can test both analog and digital signals, making it a versatile tool for any project.

Q: Is it safe to measure high voltage?
A: Absolutely, our oscilloscope can measure voltage safely up to ±400 V, thanks to its built-in safety circuits, giving you peace of mind during testing.
